The Anatomy of a Steel Building

Understanding Every Major Structural Component

Introduction

A completed steel building is far more than a collection of steel sheets and structural members.

Every component has been designed to perform a specific function, whether it is supporting structural loads, resisting wind forces, protecting the building from weather, or providing access for its occupants.

Understanding these components is essential for anyone working within the Australian shed industry. It enables better communication with customers, builders, engineers and suppliers, while also helping staff understand how design decisions influence engineering, procurement and construction.

Throughout this chapter we will examine each major component of a typical portal frame steel building, explaining its purpose, how it interacts with surrounding components and why it is important.

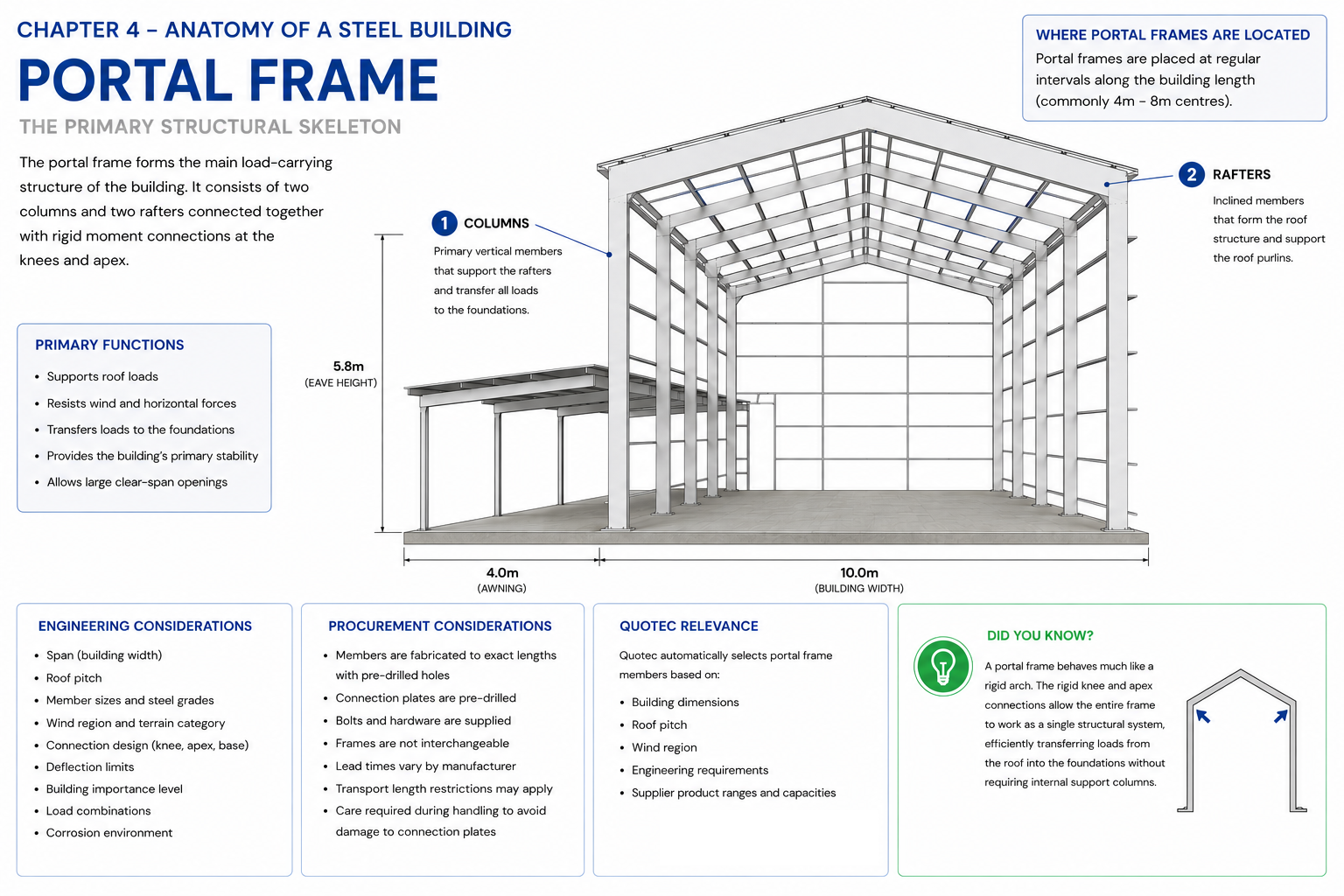

Portal Frame

What is a Portal Frame?

The portal frame is the primary structural system of most modern steel sheds. It forms the skeleton of the building and is responsible for supporting the roof while resisting wind, gravity and other structural loads.

A portal frame is typically constructed from two columns and two rafters connected together with rigid moment connections at the knees and apex. Unlike conventional framed buildings, these rigid joints allow the structure to resist horizontal forces without requiring large numbers of internal walls or braces.

Portal frames are commonly spaced between 4 and 8 metres apart depending on the building design and engineering requirements.

Purpose

The portal frame:

• Supports the roof structure.

• Transfers roof and wind loads into the foundations.

• Provides the building's primary structural strength.

• Allows large clear-span buildings without internal columns.

• Maintains stability under wind loading.

How it Works

The roof loads are transferred from the roof sheets into the purlins.

The purlins transfer those loads into the rafters.

The rafters transfer loads into the columns.

The columns transfer loads through the base plates into the concrete slab and foundations.

This continuous load path allows the building to safely resist gravity and wind forces.

1. Columns

Function

Columns are the primary vertical structural members of the portal frame. They support the rafters and transfer all structural loads safely into the building's foundations.

Role in the Structure

• Support the roof structure

• Resist vertical and horizontal (wind) loads

• Transfer loads through the base plates into the concrete slab

• Form the sides of each portal frame

Key Points

• Engineered for the building's span, height and wind region.

• Manufactured to exact lengths with pre-drilled connection holes.

• Changes to building dimensions or wind classification may require larger column sections.

2. Rafters

Function

Rafters are the inclined structural members that form the roof of the portal frame. Together with the columns, they create the primary load-carrying structure of the building.

Role in the Structure

• Form the roof pitch

• Support roof purlins

• Transfer roof loads into the columns

• Resist gravity and wind uplift forces

Key Points

• Engineered to suit roof span, pitch and loading.

• Fabricated specifically for each project.

• Any change to roof pitch or building width will influence rafter design

.

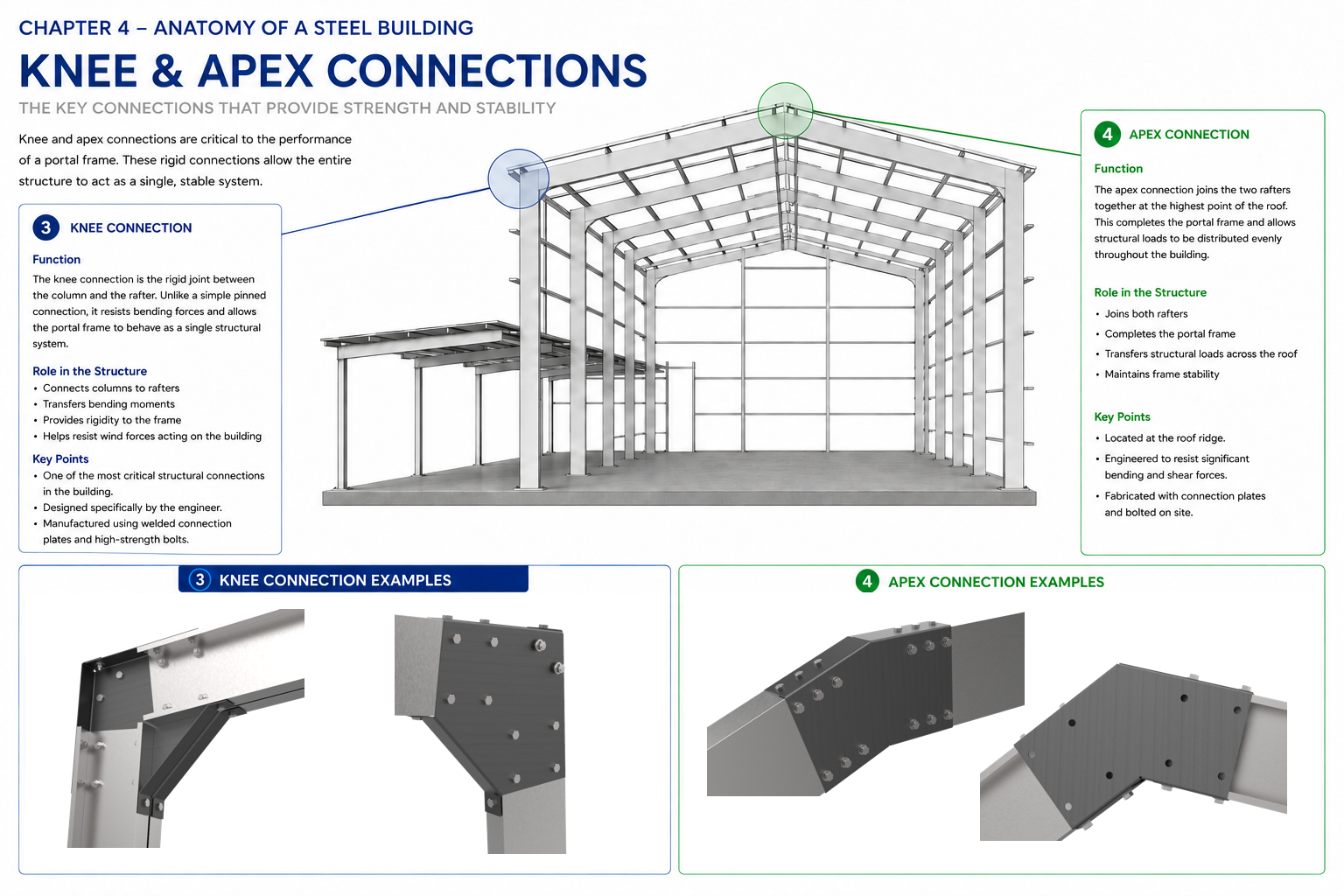

3. Knee Connection

Function

The knee connection is the rigid joint between the column and the rafter.

Unlike a simple pinned connection, the knee connection resists bending forces and allows the portal frame to behave as a single structural system.

Role in the Structure

• Connects columns to rafters

• Transfers bending moments

• Provides rigidity to the frame

• Helps resist wind forces acting on the building

Key Points

• One of the most critical structural connections in the building.

• Designed specifically by the engineer.

• Manufactured using welded connection plates and high-strength bolts.

4. Apex Connection

Function

The apex connection joins the two rafters together at the highest point of the roof.

This completes the portal frame and allows structural loads to be distributed evenly throughout the building.

Role in the Structure

• Joins both rafters

• Completes the portal frame

• Transfers structural loads across the roof

• Maintains frame stability

Key Points

• Located at the roof ridge.

• Engineered to resist significant bending and shear forces.

• Fabricated with connection plates and bolted on site.

5. Roof Purlins

Function

Roof purlins are horizontal cold-formed steel members that span between portal frames. They support the roof cladding and transfer loads into the primary structure.

Role in the Structure

• Support roof sheeting

• Transfer roof loads to the rafters

• Prevent roof sheet deflection

• Provide fixing locations for roof cladding

Key Points

• Commonly manufactured as Z Sections, C Sections or Topspan.

• Section size and spacing are determined by engineering.

• Usually supplied by the same manufacturer as the roof sheeting.

6. Wall Girts

Function

Wall girts are horizontal structural members fixed between the columns. They perform the same function as purlins but support the wall cladding instead of the roof.

Role in the Structure

• Support wall sheeting

• Transfer wind loads into the portal frame

• Prevent wall sheet deflection

• Provide fixing points for external cladding

Key Points

• Typically manufactured from cold-formed Z or C sections.

• Spacing depends on engineering requirements.

• Work together with the wall cladding to provide overall wall stability.

Roof & Wall Sheeting

What is Sheeting?

Roof & Wall sheeting forms the external weatherproof skin of the building.

It is manufactured by rollforming coated steel into specific profiles.

Purpose

Roof & Wall sheeting provides:

• Weather protection

• Water runoff

• Structural diaphragm action

• Building appearance

Engineering Considerations

Selection depends upon:

• Wind region

• Span

• Profile

• Fastener spacing

• Roof pitch

Procurement Considerations

Roof & Wall sheets are custom manufactured to exact project lengths.

Incorrect lengths generally require complete remanufacture.

Flashings

Flashings provide weatherproof transitions wherever two building surfaces meet.

Typical flashings include:

• Ridge

• Barge

• Apron

• Corner

• Head

• Jamb

Although relatively inexpensive, missing flashings are one of the most common causes of water ingress.

Gutters & Downpipes

Rainwater systems collect water from the roof and safely discharge it away from the building.

Design considerations include:

• Roof area

• Rainfall intensity

• Downpipe capacity

• Overflow provisions

Chapter Summary

A steel building is a carefully engineered system made up of structural members, cladding, fixings and accessories that work together to safely transfer loads while protecting the building from the environment.

Every component has a specific purpose. Understanding how these components interact is fundamental to engineering, procurement, manufacturing and construction. This knowledge forms the foundation for the more advanced topics explored in the following chapters, including roof systems, wind design, structural engineering and procurement.
